WI-1011 – Brushing the Upright PulleysUpdated a month ago

Applies to the Following SKUs:
CLCN22
CLCN23
CLPR22

Background

The upright pulleys should be cleaned at a regular, weekly interval or every 50,000 feet climbed. Brushing the pulleys reduces the risk of squeaks resulting from small debris which can lodge in the pulley teeth.

Tools Required

Firm Bristled Nylon or Similar Brush



Recommended Vendors
Vendor	Vendor Model #	Product Name
McMaster-Carr	63935T51	3-1/2" x 1" Brush with Handle, 12" Overall Length
Amazon	B08HQKQ97N	JIANYI Kitchen Scrub Brush
Staples	CW56792	Coastwide Professional 9" Grout Brush
The Home Depot	309996461	Anvil 7 in. Grout Brush

Procedure

1. Step onto the machine as you normally would to begin a climb. Center the handles and pedals so you’re standing level.


2. Position the handles at shoulder height by pulling the lever and sliding the handles into position.




   CAUTION

   The next steps require working inside the upright track. Keep body parts and clothing clear of the track opening while performing this maintenance action.

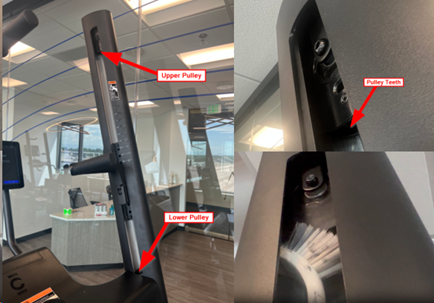

3. Place the brush onto the bottom of the right-hand upright’s upper pulley. The brush bristles should be pushed into the root of the pulley’s teeth.


4. While holding the brush in position and your left-hand on the left-hand side’s handle, begin climbing and complete 5 strokes about 12 inches in length.


5. Repeat the process for the lower pulley as shown in the above image, positioning the brush on the top of the pulley.


6. Repeat steps 3-6 for the left-hand upright.
